Cost Based Optimizer for Couchbase N1QL (SQL for JSON)

Authors & Engineering Team: Bingjie Miao, Keshav Murthy,  Marco Greco, Prathibha Bisarahalli. Couchbase, Inc.

A rule-based optimizer knows rules for everything and cost for nothing – Oscar Wilde

Abstract

Couchbase is a distributed JSON database. It provides distributed data processing, high performance indexing and declarative query language N1QL along with search index, eventing and analytics.  N1QL (Non First Normal Query Language) is SQL for JSON. N1QL is to JSON what SQL is to relations. Developers say what needs to be done and the N1QL engine will figure out the “how”. Current N1QL optimizer is a rule based optimizer.   Cost Based Optimizer(CBO) for SQL was invented at IBM some 40 years ago and has been critical to the success of RDBMS and the developer/DBA productivity.  NoSQL databases were invented some 10 years ago. Shortly after their invention, NoSQL databases started adding SQL-like query language with limited access paths and optimizer capabilities.   Most use rule based optimizer or simply support cost based optimization on simple scalar values (strings, numbers, boolean,etc) only.

To create a CBO on JSON model, you first need to collect and organize the statistics. How do you collect, store and use statistics on JSON’s flexible schema? How do you collect statistics on objects, arrays, elements within objects? How do you use them efficiently within your optimizer?

Lukas Eder once told me, “Cost-based optimizer makes SQL fully declarative.”   He has a point. Couchbase 6.5 (now GA) has Cost Based Optimizer for N1QL.  This article presents the introduction of N1QL Cost Based Optimizer (CBO) in Couchbase 6.5.  CBO is a patent-pending developer-preview feature.  In this article, we describe on how you can use CBO as well as  its implementation details.

A PDF version of this article can be downloaded here.

Table of Contents

1. Abstract
2. Introduction to N1QL
3. Using Cost-Based Optimizer for N1QL
4. N1QL Optimizer
5. Cost-Based Optimizer for N1QL
6. Statistics Collection for N1QL CBO
7. Summary
8. Resources N1QL rule-based Optimizer
9. References

Introduction to N1QL

As JSON has been increasingly accepted by the information technology industry as the lingua franca for information change, there has been an exponential rise in the need for repositories that natively store, update and query JSON documents.  SQL has added features manipulating JSON in SQL:2016. SQL:2016 adds new scalar and table functions to manipulate JSON.  An alternative approach is to treat JSON as the data model and to design the language to operate on JSON natively.  N1QL and SQL++ use the latter approach and provide natural access to scalars, objects, arrays, arrays of objects, arrays within objects and so on.

Learn N1QL at https://query-tutorial.couchbase.com/

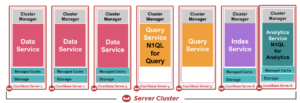

Couchbase Server:

Couchbase has engines supporting N1QL:

1. N1QL for interactive applications in the Query service.
2. N1QL for Analytics in the Analytics service.

In this article, we focus on N1QL for Query (interactive applications) implemented in the query service.   All of the data manipulated by N1QL is saved in JSON within Couchbase data store managed by the data service.

To support query processing on JSON, N1QL extends the SQL language in many ways:

• • Support for flexible schema on semi-structured self-describing JSON.
  • access and manipulate elements in JSON: scalar values, objects, arrays, objects of scalar values, arrays of scalar values, arrays of objects, arrays of arrays, etc.
  • Introduce a new boolean value, MISSING to represent a missing key-value pair in a document, this is distinct from a known null value.  This extends the three-valued logic to four-valued logic.
  • New operations for NEST and UNNEST operations to create arrays and to flatten arrays, respectively.
  • Extend the JOIN operations to work with JSON scalars, objects and arrays.
  • To speedup the processing of these JSON documents the global secondary indexes can be created on one or more scalar values, scalar values of arrays,  nested objects, nested arrays, objects, array objects, array elements.
  • Add integrated search capability using inverted search index.

Using CBO for N1QL

We’ve introduced (CBO) in Couchbase 6.5 (now GA). Let’s look at how to use the feature before delving into the details.

• CREATE a new bucket and load the data from the sample bucket travel-sample.

• Sample hotel document

Here’s an example hotel document. These values are scalars, objects, and arrays.  A query on this will access and process on all of these fields.

• Once you know the queries you want to run, you simply create the indexes with the keys.

• Now,collect statistics on the field you will have filters on.  Typically, you index the fields you index on. So, you want to collect statistics on them as well.  Unlike CREATE INDEX statement, the order of the keys has no consequence for UPDATE STASTICS statement

UPDATE STATISTICS for `hotel` (type, address, city, country, free_breakfast, id, phone);

• Array index on a simple array of scalars.  public_likes is an array of strings. DISTINCT public_likes creates an index on each element of public_likes rather than the whole public_likes array.  Details of array statistics later in the article.

UPDATE STATISTICS for `hotel`(DISTINCT public_likes);

• Now execute, explain and observe these statements.  The CBO, based on the statistics you collected above, calculated the selectivity for the predicate (country = ‘France’)

• Here’s the snippet from EXPLAIN.  Explain output will have cardinality estimates and profile output will have the actual documents (rows, keys) qualified at each operator.

• combining cost calculation on multiple predicates.  Notice that the actual results are proportional to cardinality estimates.  Join selectivity estimates are difficult to estimate due to correlations and require additional techniques.

• Calculation on array predicate: ANY.  This uses the statistics collection on the expression (DISTINCT public_likes) in the UPDATE statistics above. Array statistics are different from normal scalar statistics in the same way array index keys are different from normal index keys.  The histogram on public_keys will contain more than one value from the same document. So, all the calculations will have to account for that to get the estimates closer to reality.

• Calculation on array predicate on a field within an object of an array: ANY r IN reviews SATISFIES r.ratings.Overall = 4 END. Statistics is collected on the expression: (DISTINCT ARRAY r.ratings.Overall FOR r IN reviews END).  The statistics collection expression should be exactly the same as the index key array expression.

N1QL Optimizer

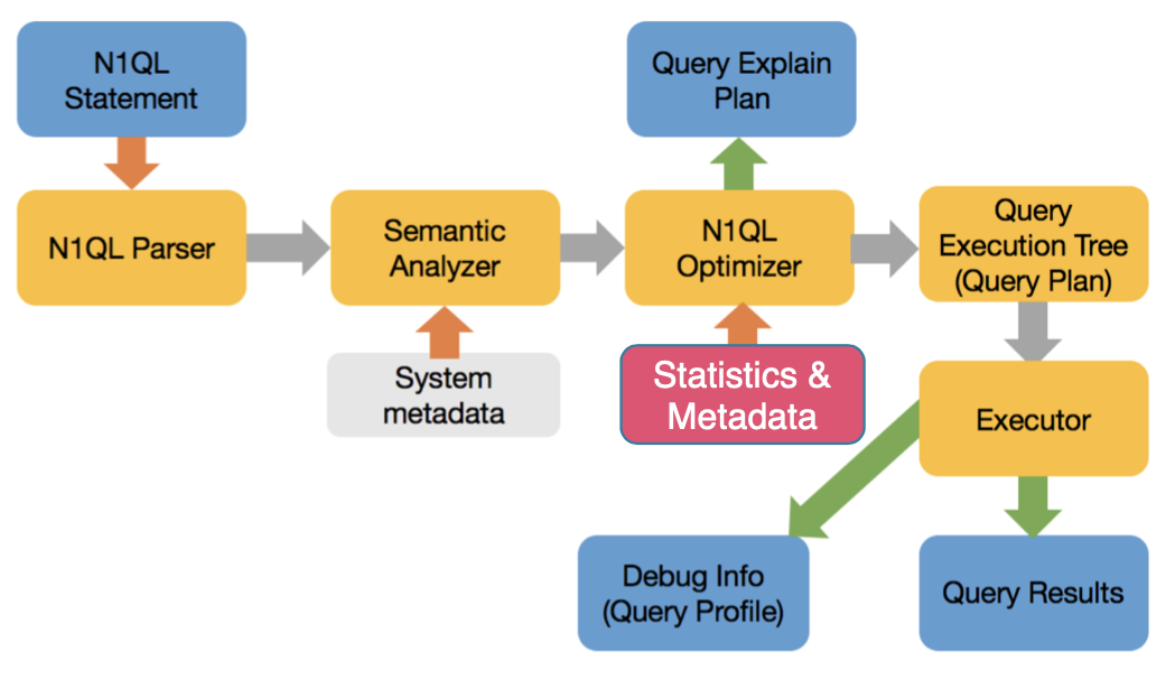

Query Execution Flow:

The optimizer, broadly speaking, does the following:

1. Rewrite the query to its optimal equivalent form to make the optimization and its choices easier.
2. Select the access path for each keyspace (equivalent to tables)
   1. Select one or more indexes for each keyspace.
3. Select the join order for all the joins in the FROM clause.  N1QL Optimizer doesn’t reorder the joins yet.
4. Select join type (e.g. nested loop or hash join) for each join
5. Finally create the query execution tree (plan).

We have described N1QL’s rule-based optimizer in this paper: A Deep Dive Into Couchbase N1QL Query Optimization.

While the discussion in this article is mainly on SELECT statements, the CBO choose query plans for UPDATE, DELETE, MERGE and INSERT (into with SELECT) statements.  The challenges, motivation and the solution is equally applicable for all of these DML statements.

N1QL has the following access methods available:

1. Value scan
2. Key scan
3. Index scan
4. Covering Index scan
5. Primary scan
6. Nested loop join
7. Hash join
8. Unnest scan

Motivation for a Cost Based Optimizer (CBO)

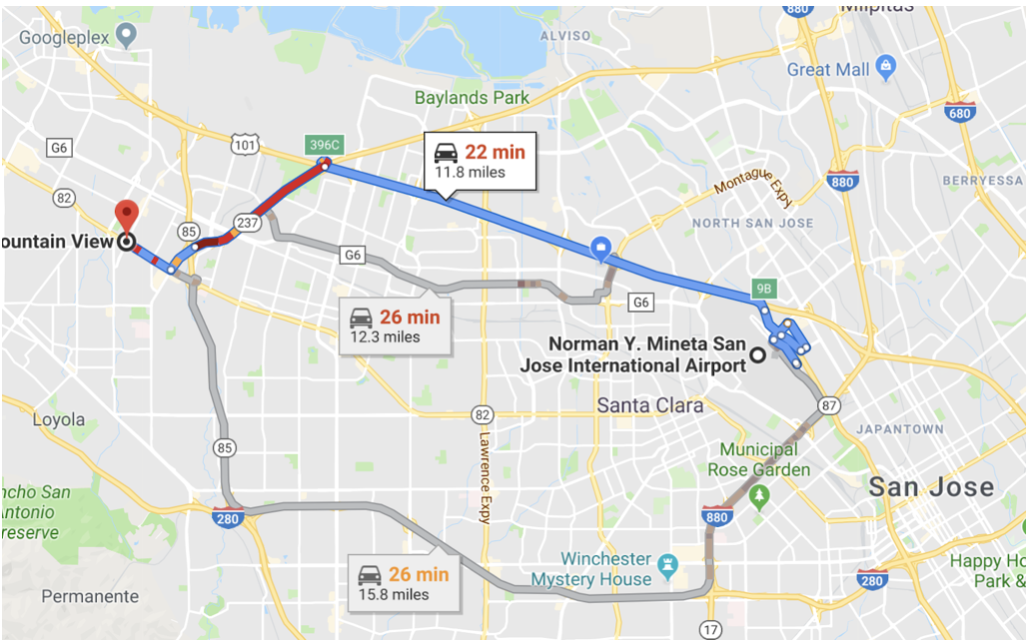

Imagine google maps give you the same route irrespective of the current traffic situation?  A cost-based routing takes into consideration the current cost (estimated time based on current traffic flow) and find the fastest route.  Similarly, a cost-based optimizer takes into consideration the probable amount of processing (memory, CPU, I/O) for each operation, estimates the cost of alternative routes and selects the query plan (query execution tree) with the least cost. In the example above, the routing algorithm considers the distance, traffic and gave you the three best routes.

For relational systems, CBO was invented in 1970 at IBM, described in this seminal paper. In N1QL’s current rule-based optimizer, planning decisions are independent of the data skew for various access paths and the amount of data that qualifies for the predicates.  This results in inconsistent query plan generation and inconsistent performance because the decisions can be less than optimal.

There are many JSON databases: MongoDB, Couchbase, Cosmos DB, CouchDB. Many relational databases support JSON type and accessor functions to index and access data within JSON.   Many of them, Couchbase, CosmosDB, MongoDB have a declarative query language for JSON and do access path selection and plan generation. All of them implement rule-based optimizer based on heuristics. We’re yet to see a paper or documentation indicating a cost-based optimizer for any JSON database.

In NoSQL and Hadoop world, there are some examples of a cost-based optimizer.

1. CockroachDB Optimizer
2. Rocket Optimizer
3. Hive
4. Impala

But, these only handle the basic scalar types, just like relational database optimizer. They do not handle changing types, changing schema, objects, arrays, and array elements — all these are crucial to the success of declarative query language over JSON.

Example Query:

SELECT * FROM customer WHERE name = “Joe” AND zip = 94587 AND status = “Premium”;

The simple question is:

• All of the indexes above are valid access path to evaluate the query. Which of the several indexes should N1QL use to run the query efficiently?
• The correct answer for this is, it depends. It depends on the cardinality which depends on the statistical distribution of data for each key.

There could be a million people with the name Joe, ten million people in zip code 94587 and only 5 people with Premium status.   It could be just a few people with the name Joe or more people with Premium status or fewer customers in the zip 94587. The number of documents qualifying for each filter and the combined statistics affect the decision.

So far, the problems are the same as SQL optimization.  Following this approach is safe and sound for collecting statistics, calculating selectivities and coming up with the query plan.

But, JSON is different:

1. The data type can change between multiple documents. Zip can be numeric in one document, string in another, the object in the third. How do you collect statistics, store it and use it efficiently?
2. It can store complex, a nested structure using arrays and objects.  What does it mean to collect statistics on nested structures, arrays, etc?

Scalars: numbers, boolean, string, null, missing. In the document below, a, b, c,d, e are all scalars.

{ “a”: 482, “b”: 2948.284, “c”: “Hello, World”, “d”: null, “e”: missing }

Objects:

1. Search for the whole objects
2. Search for elements within an objects
3. Search for exact value of an attribute within the objects
4. Match the elements, arrays, objects anywhere within the hierarchy.

This structure is known only after the user specifies the references to these in the query.  If these expressions are in predicates, it would be good to know if they actually exist and then determine their selectivity.

Here are some examples.

Objects:

1. Refer to a scalar inside an object.   E.g.  Name.fname, Name.lname
2. Refer to a scalar inside an array of an object.  E.g. Billing[*].status
3. Nested case of (1), (2) and (3).   Using UNNEST operation.
4. Refer to an object or an array in the cases (1) through (4).

Arrays:

1. Match the full array.
2. Match scalar elements of an array with supported types (number, string, etc)
3. Match objects within an array.
4. Match the elements within an array of an array.
5. Match the elements, arrays, objects anywhere within the hierarchy.

LET Expressions:

1. Need to get selectivity on the expressions used in the WHERE clause.

UNNEST operation:

1. Selectivities on the filters on UNNESTed doc to help pick up the right (array) index.

JOINs: INNER, LEFT OUTER, RIGHT OUTER

1. Join selectivities.
   1. Usually a big problem in RDBMS as well.  May not be in v1.

Predicates:

1. USE KEYS
2. Comparison of scalar values: =, >, <, >=, <=, BETWEEN, IN
3. Array predicates: ANY, EVERY, ANY & EVERY, WITHIN
4. Subqueries

Cost-Based Optimizer for N1QL

The cost-based optimizer will now estimate the cost based on the available statistics on data, index, calculate the cost of each operation and choose the best path.

Challenges to Cost-Based Optimizer for JSON

1. Collect statistics on scalars, objects, arrays, array elements — anything on which you can apply a predicate (filter)
   1. Create the right data structure to store statistics on a field whose type can very from one type to another.
2. Create methods to use the statistics to efficiently calculate accurate estimates on complex set of statistics collected above.
3. Use appropriate statistics, consider valid access paths, and create a query plan.
4. A field can be an integer in one document, string in next, array in another and go missing in yet another. The histograms

Approach to N1QL cost-based optimizer

N1QL optimizer will be responsible for determining the most efficient execution strategy for a query.  There are typically a large number of alternative evaluation strategies for a given query. These alternatives may differ significantly in their system resources requirement and/or response time.  A cost based query optimizer uses a sophisticated enumeration engine (i.e., an engine that enumerates the search space of access and join plans) to efficiently generate a profusion of alternative query evaluation strategies and a detailed model of execution cost to choose among those alternative strategies.

N1QL Optimizer work can be categorized into these:

1. Collect statistics
   1. Collect statistics on individual fields and create a single histogram for each field (inclusive of all data types that may appear in this field).
   2. Collect statistics on each available index.
2. Query rewrite.
   1. Basic rule based query rewrite.
3. Cardinality estimates
   1. Use available histogram and index statistics for selectivity estimation.
   2. Use this selectivity for cardinality estimation
      1. This is not so straightforward in case of arrays.
4. Join ordering.
   1. CONSIDER a query:  a JOIN b JOIN c
      1. This is same as ( b JOIN a JOIN c),  (a JOIN c JOIN b), etc.
      2. Choosing the right order makes a huge impact on the query.
   2. The Couchbase 6.5 implementation does not yet do this.  This is a well understood problem for which we can borrow solutions from SQL.  JSON does not introduce new issues. The ON clause predicates can include array predicates.  This is in the roadmap.
5. Join type
   1. The rule based optimizer used  block-nested-loop by default. Need to use directives for forcing hash join.  Directive also needs to specify the build/probe side. Both are undesirable.
   2. CBO should select the join type.  If a hash join is chosen, it should automatically choose the build and the probe side. Choosing the best inner/outer keyspace for nested loop is in our roadmap as well.

Statistics Collection for N1QL CBO

Optimizer statistics is an essential part of cost-based optimization. The optimizer calculates costs for various steps of query execution, and the calculation is based on the optimizer’s knowledge on various aspects of the physical entities in the server – known as optimizer statistics.

Handling of mixed types

Unlike relational databases, a field in a JSON document does not have a type, i.e., different types of values can exist in the same field. A distribution therefore needs to handle different types of values. To avoid confusion we put different types of values in different distribution bins. This means we may have partial bins (as last bin) for each type. There are also special handling of the special values MISSING, NULL, TRUE and FALSE. These values (if present) always reside in an overflow bin. N1QL has predefined sorting order for different types and MISSING/NULL/TRUE/FALSE appears at the beginning of the sorted stream.

collection/bucket statistics

For collections or buckets, we gather:

• number of documents in the collection/bucket
• average document size

Index statistics

For a GSI index, we gather:

• number of items in the index
• number of index pages
• resident ratio
• average item size
• average page size

Distribution statistics

For certain fields we also gather distribution statistics, this allows more accurate selectivity estimation for predicates like “c1 = 100”, or “c1 >= 20”, or “c1 < 150”. It also produces more accurate selectivity estimates for join predicates such as “t1.c1 = t2.c2”, assuming distribution statistics exist for both t1.c1 and t2.c2.

Gathering optimizer statistics

While our vision is to have the server automatically update necessary optimizer statistics, for the initial implementation optimizer statistics will be updated via a new UPDATE STATISTICS command.

UPDATE STATISTICS [FOR] <keyspace_reference> (<index_expressions>) [WITH <options>]

<keyspace_reference> is a collection name (we may support bucket as well, it’s undecided at this point).

The command above is for gathering distribution statistics, <index_expressions> is one or more (comma separated) expressions for which distribution statistics is to be collected. We support the same expressions as in CREATE INDEX command, e.g., a field, a nested fields (inside nested objects, e.g. location.lat), an ALL expression for arrays, etc.The WITH clause is optional, if present, it specifies options for the UPDATE STATISTICS command. The options are specified in JSON format similar to how options are specified for other commands like CREATE INDEX or INFER.

Currently the following options are supported in the WITH clause:

• sample_size: for gathering distribution statistics, user can specify a sample size to use. It is an integer number. Note that we also calculate a minimum sample size and we take the larger of the user-specified sample size and calculated minimum sample size.
• resolution: for gathering distribution statistics, indicate how many distribution bins is desired (granularity of the distribution bins). It is specified as a float number, taken as a percentage. E.g., {“resolution”: 1.0} means each distribution bin contains approximately 1 percent of the total documents, i.e., ~100 distribution bins are desired. Default resolution is 1.0 (100 distribution bins). A minimum resolution of 0.02 (5000 distribution bins) and a maximum resolution of 5.0 (20 distribution bins) will be enforced
• update_statistics_timeout: a time-out value (in seconds) can be specified. The UPDATE STATISTICS command times out with an error when the time-out period is reached. If not specified, a default time-out value will be calculated based on the number of samples used.

Handling of mixed types

Unlike relational databases, a field in a JSON document does not have a type, i.e., different types of values can exist in the same field. A distribution therefore needs to handle different types of values. To avoid confusion we put different types of values in different distribution bins. This means we may have partial bins (as last bin) for each type. There are also special handling of the special values MISSING, NULL, TRUE and FALSE. These values (if present) always reside in an overflow bin. N1QL has predefined sorting order for different types and MISSING/NULL/TRUE/FALSE appears at the beginning of the sorted stream.

Boundary bins

Since we only keep the max value for each bin, the min boundary is derived from the max value of the previous bin. This also means that the very first distribution bin does not have a min value. To resolve that, we put a “boundary bin” at the very beginning, this is a special bin with bin size 0, and the only purpose of the bin is to provide a max value, which is the min boundary of the next distribution bin.

Since a distribution may contain multiple types, we separate the types to different distribution bins, and we also put a “boundary bin” for each type, such that we know the minimum value for each type in a distribution.

Example of handling mixed types and boundary bins

UPDATE STATISTICS for CUSTOMER(quantity);

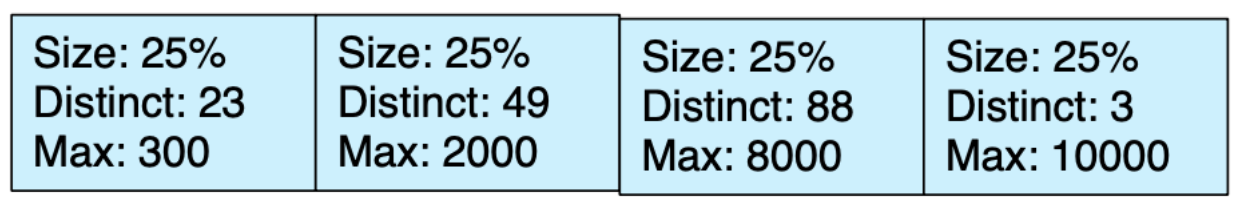

Histogram: Total number of documents: 5000 with quantity in simple integers.

Predicates:

1. (quantity = 100):  Estimate 1%

2. (quantity between 200 and 100) : Estimate 20%

We also use additional techniques like keeping the highest/second-highest, lowest, second lowest values for each bin, keep an overflow bin for values which occur more than 25% of the time to improve this selectivity calculation.

In JSON, quantity can be any of the types: MISSING, null, boolean, integer, string, array and an object.  For the sake of simplicity, we show quantity histogram with three types: integers, strings and arrays. This has been extended to include all of the types.

N1QL defines the method by with values of different types can be compared.

1. Type order: from lowest to highest
   1. Missing < null < false < true < numeric < string < array < object
      1. https://docs.couchbase.com/server/4.5/n1ql/n1ql-language-reference/orderby.html
2. After we sample the documents, we first group them by types, sort them within the type group and create the mini-histogram for each type.

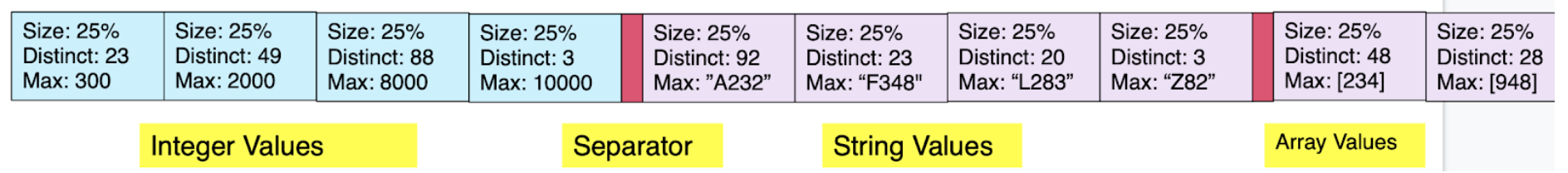

3. We then stitch these mini-histograms into a large histogram with a boundary bin between each type.  This helps the optimizer to calculate selectivities efficiently either on a single type or across multiple types.

Examples:

Simple data types

Distribution statistics for simple data types are straight forward. Boolean values will have two overflow bins storing TRUE and FALSE values. Numeric and string values are also easy to handle. An open question remains as to whether we want to limit the size of a string value as a bin boundary, i.e., if a string is very long, do we want to truncate the string before storing as a max value for a distribution bin. Long string values in an overflow bin will not be truncated since that requires an exact match.

Arrays

The design for how to collect distribution statistics has not been finalized. What we want to do is probably gather distribution statistics on individual elements of the array, since that’s how array index works. We may need to support DISTINCT/ALL variations of the array index by including the same keyword in front of array field specification, which determines whether we remove duplicates from the array before constructing histogram.

Estimating selectivity of an array predicate (ANY predicate) based on such a histogram is a bit challenging. There is no easy way to account for variable lengths of arrays in the collection. In the first release, we’ll just keep an average array size as part of distribution statistics. This assumes some form of uniformity, which is certainly not ideal, but is a good start.

Estimating selectivity of ALL predicate is even trickier, we may need to use some sort of default value for this.

Consider this JSON document in the keyspace

The field “a” is a scalar, b is an array of scalars and c is an array of objects.  When is issue a query, you can have predicates on any or all of the fields: a, b, c.  So far we’ve discussed the scalars whose type can change. Now let’s discuss array predicates statistics collection and selectivity calculation.

These are simple predicates on array of scalars and array of objects.This is a generalized implementation where the query can be written to filter elements and value in arrays of arrays, arrays of objects of arrays, etc.

When you have a billion of these documents, you create array indexes to efficiently execute the filter.  Now, for the optimizer, it’s important to estimate the number of documents that qualify for a given predicate.

Index i1 with the key DISTINCT b creates an index with only the distinct (unique) elements of b.

Index i2 with the key ALL b creates an index with all the elements of b.

This exists to manage the size of the index, possibility of getting large intermediate results from the index.  In both cases, there will be MULTIPLE index entries for EACH element of an array. This is UNLIKE a scalar which has ONLY one entry in the index PER JSON document.

For more on array indexing, see array indexing documentation in Couchbase.

How do you collect statistics on this array or array of objects?  The key insight is to collect statistics on EXACTLY the same expression as the expression you’re creating the index on.

In this case, we collect statistics on the following:

Now, within the histogram, there can be zero, one or more values originating from the same document.   So, calculating the selectivity (estimated percentage of documents qualifying the filter) is not so easy!

Here’s the novel solution to address the issue with arrays:

For normal stats:  there’s one index entry per document.

Cardinality becomes a simple: selectivity x table cardinality;

For array stats:  There is N index entry per document;

                               N-> Number of distinct values in the array.

                               N = 0 to n, n <= ARRAY_LENGTH(a)

This additional statistics has to be collected and stored in the histogram.

Now, when a index is chosen for the evaluation of a particular predicate, index scan will return all of the qualified document keys, which contain duplicates.  The query engine will then do a distinct operation to get the unique keys to get the correct (non-duplicate) results. The cost-based optimizer will have to take this into account while calculating the number of documents (not the number of index entries) that’ll qualify the predicate.  So, we divide the estimate by the estimate of average array size length.

This cardinality can be used to cost and compare the cost of using the array-index path versus other legal access path to find the best access path.

Object, JSON and binary values

It’s unclear how useful a histogram on an object/JSON value or a binary value will be. It should be rare to see comparisons with such values in the query. We can either handle these exactly like other simple types, i.e., put number of values, number of distinct values, and a max boundary on each distribution bin; or we can simplify and just put the count in the distribution bin without number of distinct and max value. The issue with max value is similar to long strings, where the value can be large, and storing such large values may not be beneficial in the histogram. This remains an open question for now.

Statistics for fields in nested objects

Consider this JSON document in the keyspace:

Following is the dotted expression to access nested objects.

FROM k WHERE b.p = “NY” AND c.e.x = “hello” AND c.e.z = 48;

Since each path is unique, collecting and using the histogram is just like scalar.

UPDATE STATISTICS FOR k(b.p, c.e.x, c.e.z)

Summary

We’ve described how we’ve implemented a cost based optimizer for N1QL (SQL for JSON) and handled the following challenges.

1. N1QL CBO can handle flexible JSON schema.
2. N1QL CBO can handle scalars, objects, and arrays.
3. N1QL CBO can handle stats collection and calculate estimates on any field of any type within JSON.
4. All these have improved query plans and therefore improve the performance of the system.  It’ll also reduce the TCO by reducing the DBA performance debugging overhead.
5. Download Couchbase 6.5 and try it out yourself!

Resources N1QL rule-based Optimizer

The first article describes the Couchbase Optimizer as of 5.0.  We added ANSI joins in Couchbase 5.5. The second article includes its description and some of the optimization done for it.

1. A Deep Dive Into Couchbase N1QL Query Optimization https://dzone.com/articles/a-deep-dive-into-couchbase-n1ql-query-optimization
2. ANSI JOIN Support in N1QL https://dzone.com/articles/ansi-join-support-in-n1ql
3. Create the right index, Get the right Performance for the rule-based optimizer.
   1. https://dzone.com/articles/create-the-right-index-get-the-right-performance
   2. https://dzone.com/articles/create-the-right-index-get-the-right-performance-p
4. Index selection algorithm
   1. https://www.slideshare.net/journalofinformix/n1ql-query-optimizer-improvements-in-couchbase-50-by-sitaram-vemulapalli

 References

1. Access Path Selection in a Relational Database Management System. https://people.eecs.berkeley.edu/~brewer/cs262/3-selinger79.pdf
2. Cost based optimization in DB2 XML.  http://www2.hawaii.edu/~lipyeow/pub/ibmsys06-xmlopt.pdf
3. Access Path Selection in a Relational Database Management System. https://people.eecs.berkeley.edu/~brewer/cs262/3-selinger79.pdf
