Pod vs. Container: What are the Key Differences?

What is a Kubernetes Pod?

A Kubernetes Pod is the smallest deployable unit in Kubernetes, representing a single instance of a running process in the cluster. Pods are typically created and managed by higher-level Kubernetes controllers like Deployments and ReplicaSets, which handle scaling, updates, and lifecycle management.

Pods can contain one or multiple containers with the same network namespace, IP, and storage volumes, allowing them to communicate efficiently and share resources. For example, a Pod might include a main application container and a helper container that performs tasks like logging or data synchronization.

What are Pods Used for in Kubernetes?

Pods in Kubernetes are used to run and manage applications in a containerized environment. They serve several purposes, including:

1. 1. Encapsulation of Application Components: Pods can have one or more containers that work closely together, sharing resources such as storage volumes and network namespaces. This allows related processes to communicate efficiently and perform tasks collaboratively, making it easier to manage multi-container applications that need to interact closely, such as a web server container paired with a logging or monitoring container.
   2. Deployment and Scaling: Pods are the fundamental units of deployment in Kubernetes. When you deploy an application, you define it in terms of Pods. Kubernetes uses these definitions to ensure the desired number of Pod replicas are running in the cluster. This abstraction allows Kubernetes to handle complex deployment strategies, scale applications up or down, and ensure high availability by distributing Pods across different nodes.
   3. Network Isolation: Pods have their own network namespace, providing isolation between different applications running in the cluster. This ensures that applications don’t interfere with each other’s network traffic, maintaining a clean and organized network environment.
   4. Storage Sharing: Pods can also share storage volumes, allowing them to access data persistently. This is useful for applications that share data between containers or store data beyond the Pod’s lifetime. This feature allows for data persistence and sharing, even when Pods are restarted or scaled.

What is a Container in Kubernetes?

A container in Kubernetes is a lightweight, standalone executable package that includes everything needed to run a piece of software, including the application code, runtime, system tools, libraries, and settings. Containers are designed to be portable and consistent across different environments, ensuring that applications run the same, regardless of where they’re deployed. In Kubernetes, containers are the building blocks encapsulated within Pods.

Containers in Kubernetes leverage containerization technologies like Docker or containerd to isolate applications from their environment to provide a consistent runtime environment. This isolation ensures the application behaves similarly, whether running on a developer’s local machine, a test environment, or a production cluster.

What are Containers Used for in Kubernetes?

Containers in Kubernetes are used to package and run applications in a consistent, isolated environment. Below are some of the key purposes of containers in Kubernetes:

1. 1. Isolation and Consistency: Containers encapsulate an application’s code, runtime, system tools, libraries, and settings, ensuring the application behaves the same in any environment. This isolation helps avoid conflicts between different applications and their dependencies, making developing, testing, and deploying software across various environments easier.
   2. Portability and Scalability: By abstracting the application from the underlying infrastructure, containers make it easy to move applications across different environments, such as from a developer’s laptop to a test server or from an on-premises data center to a cloud provider. Kubernetes leverages this portability to manage the lifecycle of containers, including deployment, scaling, and updates. Kubernetes can automatically scale containers up or down based on demand, ensuring the application remains responsive and efficient.
   3. Version Control and Reproducibility: Container images are immutable, ensuring that the application code and its dependencies remain consistent. This immutability makes it easier to track changes and reproduce application behavior.

Now that we’ve reviewed how Pods and containers are used in Kubernetes, let’s discuss communication between Pods and containers.

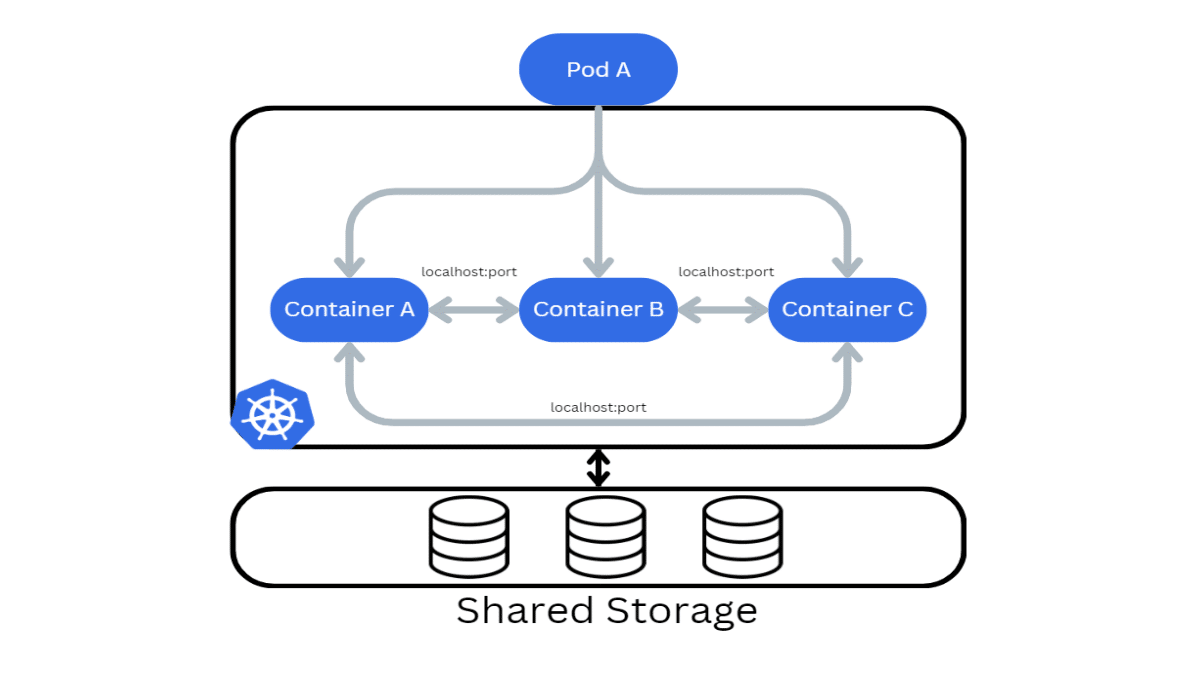

Communication Between Containers in a Pod

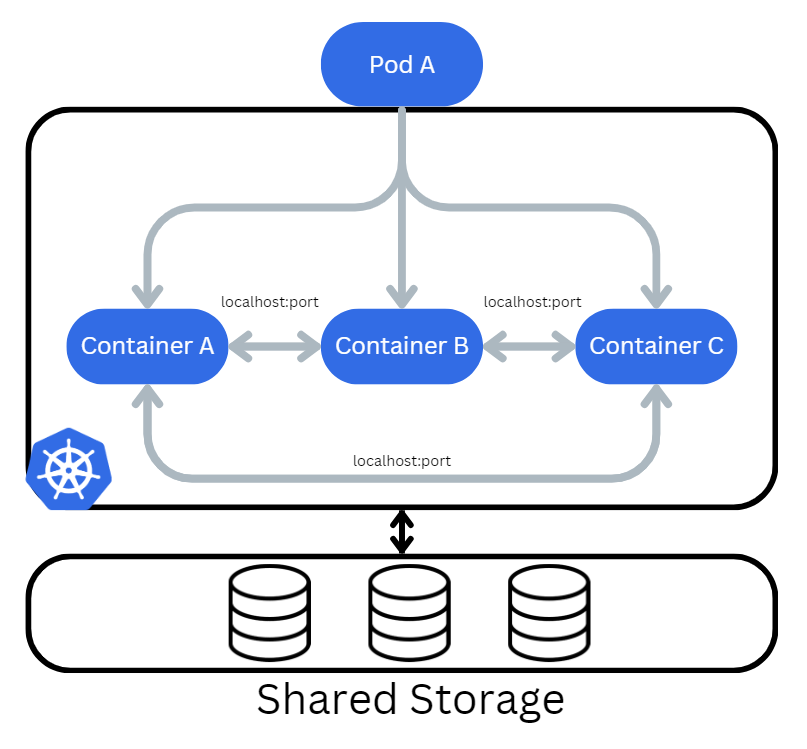

Communication between containers in a Pod

In a Kubernetes Pod, containers communicate with each other primarily through two mechanisms:

1. Shared Network Namespace
   All containers within a Pod share the same network namespace. This means:
   • Localhost Communication: Containers can communicate using localhost and the ports they expose. Since they share the same IP address, they can easily reach each other without knowing external IPs or using network policies.
   • No Network Overhead: Communication within the same Pod avoids the network overhead that would be present if containers were in separate Pods or across nodes.
2. Shared Storage Volumes
   Containers within a Pod can also communicate and share data through shared storage volumes:

   • Shared Volumes: Volumes can be mounted into multiple containers within a Pod. This allows containers to read and write to the same files, facilitating data sharing and communication through the file system.
   • Consistent Storage: Since the volume is shared, all containers in the Pod can access the same persistent storage, ensuring data consistency and facilitating inter-container communication for tasks like logging or caching.

These two mechanisms enable containers in a Pod to work together seamlessly, behaving like a cohesive unit despite running in separate container runtimes.

Differences Between Clusters vs. Pods vs. Containers

Clusters, Pods, and containers play a distinct role in the Kubernetes architecture, and understanding their differences is crucial for effectively deploying and managing applications.

In the table below, you can address the key differences between each component:

How to Create a Kubernetes Pod

Creating a Kubernetes Pod in a declarative way involves writing a YAML configuration file that defines the Pod’s specifications and then applying this configuration to your Kubernetes cluster using the kubectl command-line tool. To proceed with the steps below, you need to have the following prerequisites:

• • Up and running Kubernetes cluster
  • kubectl installed
  • Access to the cluster granted and configured

Below are the steps to create a simple Kubernetes Pod:

1. 1. Write the Pod Configuration File
      Create a YAML file (e.g., pod.yaml) with the following content. This example defines a Pod named my-pod that runs a single container using the nginx image.


      YAML

      # pod.yaml apiVersion: v1 kind: Pod metadata: name: my-pod spec: containers: - name: my-container image: nginx:latest ports: - containerPort: 80

      1 2 3 4 5 6 7 8 9 10 11

      # pod.yaml apiVersion: v1 kind: Pod metadata:   name: my-pod spec:   containers:   - name: my-container     image: nginx:latest     ports:     - containerPort: 80

   2. Apply the Configuration to the Cluster and Verify the Pod Status
      Use the kubectl apply command to create the Pod in your Kubernetes cluster based on the configuration file.

      ## Apply the Pod configuration $ kubectl apply -f pod.yaml ## Verify Pod’s status $ kubectl get pods

      1 2 3 4

      ## Apply the Pod configuration $ kubectl apply -f pod.yaml ## Verify Pod’s status $ kubectl get pods


      You should see output similar to this, indicating that the Pod my-pod is running:


      NAME     READY   STATUS    RESTARTS   AGE my-pod   1/1           Running    0                    10s

      1 2	NAME     READY   STATUS    RESTARTS   AGE my-pod   1/1           Running    0                    10s

   3. Inspect the Pod Details
      You can get detailed information about the Pod by describing it.


      ## Inspect Pod details $ kubectl describe Pod my-pod

      1 2	## Inspect Pod details $ kubectl describe Pod my-pod

Conclusion and Additional Resources

Pods and containers are vital in orchestrating and managing applications within a Kubernetes cluster. Pods serve as the fundamental deployable units, encapsulating one or more containers that share the same network and storage resources, thus enabling seamless communication and data sharing among containers. Containers, on the other hand, run the individual application processes within these Pods, ensuring that each application component operates in a consistent and isolated environment. Together, Pods and containers enable efficient deployment, scaling, and management of complex, distributed applications in a Kubernetes ecosystem.

Visit these resources on Couchbase to learn more about Kubernetes, Pods, and containers:

• • • Container Security
    • Cloud-Native vs Cloud-Agnostic
    • Self-Managed Couchbase for Kubernetes
    • Couchbase Cloud-Native Database – Docs
    • Install the Operator on Kubernetes – Docs
    • Kubernetes Networking – Docs
    • Couchbase Scheduling and Isolation – Docs

FAQ

What Roles do Pods and Containers Play in Kubernetes? Pods manage and group containers to ensure efficient application deployment, scaling, and lifecycle management within the Kubernetes cluster.

Can a Pod Contain Multiple Containers? Yes, a Pod can contain multiple containers. These containers within a Pod share the same network namespace and storage volumes, allowing them to communicate and share data easily.

What are Containerized Applications? Containerized applications are applications packaged with all their dependencies, libraries, configuration files, and binaries encapsulated into a container. This packaging ensures the application runs consistently across different computing environments, from development to production.
